Glass Disc Machine for Plastic & Rubber Parts Inspection
Optical inspection machine for plastic and rubber parts: flash, short mould, flow marks, cracks and colour checked with dimensions at up to 300 PPM.
Vision inspection machine for plastic and rubber components
The Vision Inspection Machine for Plastic & Rubber Parts is a vision-based system designed for inspecting plastic and rubber components, automating quality control and surface-defect detection.
It identifies surface defects such as scratches, texture faults, flash, cut marks, flow marks, damage, short mould, foreign material, colour variation and surface deformities, and performs dimensional inspection — inner diameter, outer diameter, angle and height — on every part.
Quantity-wise separate OK ejections and both manual and auto loading systems are among its key features, and the machine achieves inspection speeds of up to 300 parts per minute for high-volume lines.
Beyond surface and dimensional checks it offers operation-missing detection, absence/presence verification and OCR-OCV character recognition, keeping inspection of plastic and rubber parts accurate and consistent in volume production.
Key features
- Quantity wise separate OK Ejections
- Manual as well as Auto loading systems.
- Inspection Speed up to 300 PPM.
- Detailed Dimensional & Surface Defects Inspection
Can inspect
Inspection parameters
Surface defects: Colour Detection, Scratch Detection, Flash, Cut Marks, Flow Mark, Damage, Short Mould, Crack, Texture Verification, Surface Deformities Detection, Foreign Material
Other checks: Operation Missing, Absence / Presence Verification, OCR-OCV
Camera stations
| Camera | Position | Operations |
|---|---|---|
| 1 | Top | OD, ID Inspection |
| 2 | Side | Side Dimension Inspection |
| 3 | Top | Top Surface Defects |
| 4 | Bottom | Bottom Surface Defects |
| 5 | Top | ID 360° Surface Defects |
| 6 | Top | OD 360° Surface Defects |
Camera configuration is customisable to the defect and size criteria of your part.
Inspection results on screen

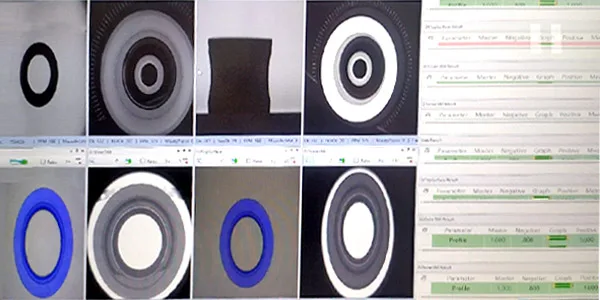

Screens from the machine's own software for this part family: the camera view, the measured dimensions overlaid, and the result table with master value, tolerance, measured value and the OK / NOT-OK count.
The parts this configuration inspects, and the defects it catches

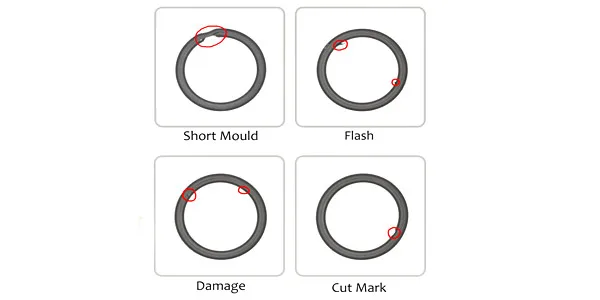

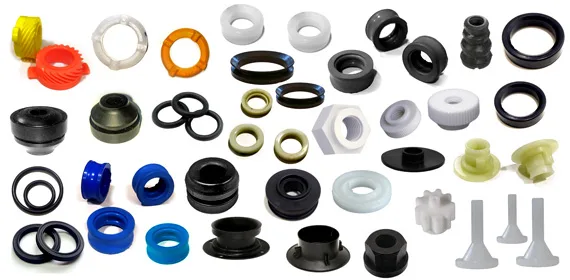

From our own catalogue: the Glass Disc machine, sample parts it has inspected, and the defects its cameras flag on them.
Project delivered for this part
Inspection systems we have built — the part, the checks, the camera system.

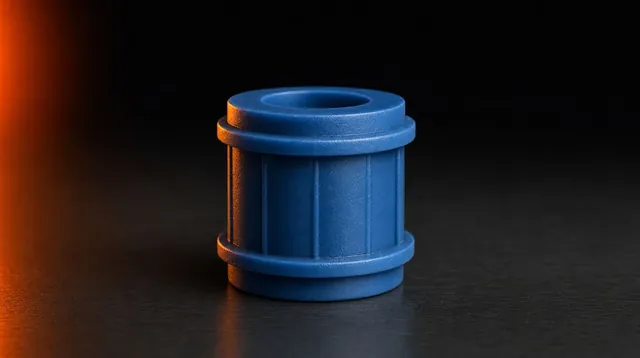

Plastic part inspectionFlash, protrusion, short shot pin, white patches, stake pin & guard bar damage, damaged insert, comb damageMulti-variety visionWhy manufacturers choose this configuration
Chosen for moulded parts because flash, short mould, flow marks and colour are caught together with dimensions on every piece, in plastic or rubber.
Questions buyers ask
Which plastic and rubber parts can it inspect?
Moulded plastic parts and rubber parts — for dimensional inspection, surface-defect inspection and verification of moulded components.
What dimensions does it check?
Inner diameter, outer diameter, angle and height.
What defects does it detect?
Colour variation, scratches, flash, cut marks, flow marks, damage, short mould, cracks, texture differences, surface deformities and foreign material.
Can it detect missing operations and verify presence?
Yes — operation-missing detection, absence/presence verification and OCR/OCV for character recognition are standard checks.
What speed and loading options does it provide?
Up to 300 parts per minute, with manual or automatic loading.
Not sure this configuration fits your part?
Courier sample parts to Bhosari for a free feasibility run: the engineer reports the defects this configuration catches and the speed it holds on your parts. VisiExpert can take the quick questions first.
