Glass Disc Machine for Washer Inspection
Vision inspection machine for washers, circlips, shims and stampings: ID, OD and thickness measured, surface defects sorted out, up to 300 PPM.
Vision inspection and sorting machine for washers and circlips
The Glass Disc Machine for Washer Inspection is an automated system that combines optical inspection with precision automation to hold quality in the manufacturing process. It detects and identifies defects on the surface of washers and circlips — dent mark, chip off, black spot, outer burr, foreign material, pit mark, line mark, burr on OD, plating defect and cut marks — using high-precision optical sensors and inspection algorithms.
Alongside surface checking, the machine performs dimensional inspection: inner diameter, outer diameter and thickness are measured for dimensional accuracy and consistency.
It is built for high-speed inspection, with a capacity of up to 300 parts per minute, so large volumes are inspected without slowing production. Manual and automatic feeding systems are both supported, and quantity-wise separate OK ejections sort acceptable parts from defective ones.
Key features
- Manual as well as Auto loading systems.
- Inspection Speed up to 300 PPM.
- Precise Dimensional Measurement
- Single Program/ Common Model
Can inspect
Inspection parameters
Surface defects: Dent Mark, Chip Off, Black Spot, Outer Burr, Foreign Material, Pit Mark, Line Mark, Burr on OD, Plating Defect & Cut Mark
Other checks: Bend
Inspection results on screen

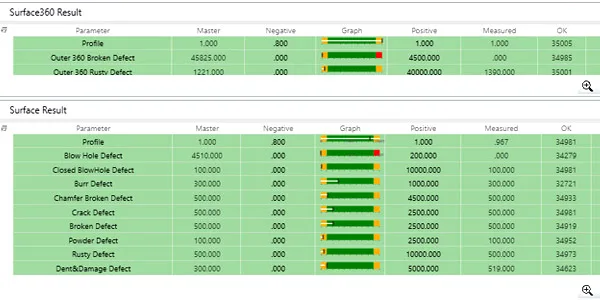

Screens from the machine's own software for this part family: the camera view, the measured dimensions overlaid, and the result table with master value, tolerance, measured value and the OK / NOT-OK count.
This configuration on video
From our own YouTube channel — press play to load a film.
Optical sorting machine for washers

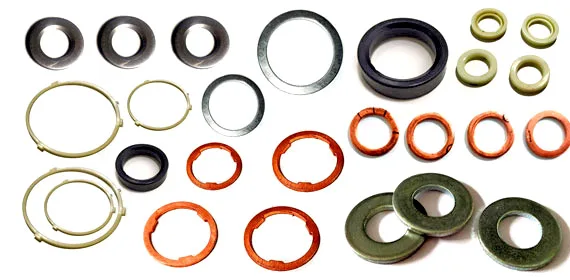

The parts this configuration inspects, and the defects it catches
From our own catalogue: the Glass Disc machine, sample parts it has inspected, and the defects its cameras flag on them.
Why manufacturers choose this configuration
Chosen for washers, circlips, shims and stamping parts because one setup inspects the whole family of flat parts for size and surface defects at high volume.
Questions buyers ask
What parts can it inspect besides washers?
Shims, circlips and stamping parts — metal and rubber components alike — for dimensional and surface-defect inspection at high volume.
What dimensions and defects does it check?
ID, OD and thickness; defects such as dent mark, chip off, black spot, outer burr, foreign material, pit mark, line mark, burr on OD, plating defect, cut mark and bend.
What speed and loading options does it provide?
Up to 300 parts per minute, with manual or automatic loading. Similar variants run on one program (common model).
Not sure this configuration fits your part?
Courier sample parts to Bhosari for a free feasibility run: the engineer reports the defects this configuration catches and the speed it holds on your parts. VisiExpert can take the quick questions first.
