Vertical Visigauge
One-click gauging of 25+ dimensions in a fraction of a second — the vertical type, for pressed, stamped, rubber and precision machined parts.
Vision measuring machine for pressed parts, stamping parts and small plastic parts
- Repeatability
- From 1 µm
- Dimensions per click
- 25+
- Reports
- Batch-wise + SPC
The Vertical Visigauge is a vision measuring machine — an optical machine vision system for measuring brass, stamped, pressed and automotive parts from the top view. A single click measures more than 25 dimensions of the part, and results save automatically or manually with batch-wise and SPC reports.
Read the full description
It measures ID, OD, thread parameters, hole count, centre distance, chamfer angle and width, gear major and minor diameter and radius on automotive parts, precision machined parts, small plastic parts, rubber components, stamping parts, turned components and precision brass components.
Key features
- One click measurement with high precision.
- Repeatability starts from 1 micron*.
- Automatic and manual saving of data with Batch Wise Report and SPC Report.
- One unique instrument to inspect more than 25 dimensions in a fraction of second.
Can inspect
Inspection parameters
Models
| Model | Field of view (W × L) | Repeatability* |
|---|---|---|
| VVG-3624-20 | 24 × 36 mm | 1 µm |
| VVG-4530-20 | 30 × 45 mm | 1 µm |
| VVG-5335-20 | 35 × 53 mm | 1.5 µm |
| VVG-6543-20 | 43 × 65 mm | 2 µm |
| VVG-9060-20 | 60 × 90 mm | 3 µm |
Dimensions (L × W × H): VVG-4530-20 400 × 250 × 850 mm · VVG-9060-20 550 × 350 × 990 mm. *Repeatability is measured on the outer diameter (OD) of a calibrated master part. Data report and backup: .xls through USB. Machine types: One-Click and Auto-Focus.

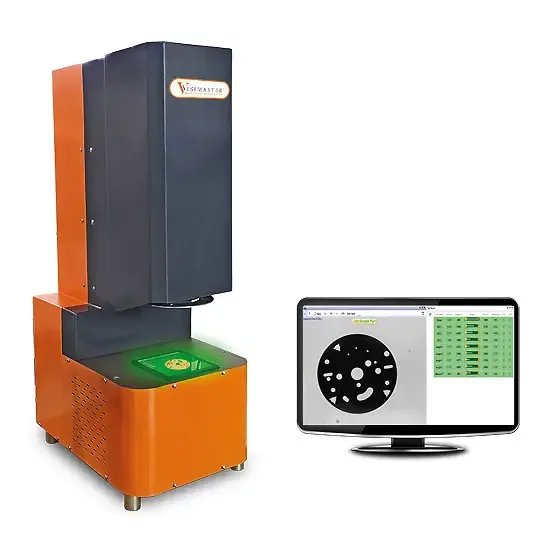

The machine and the parts it inspects

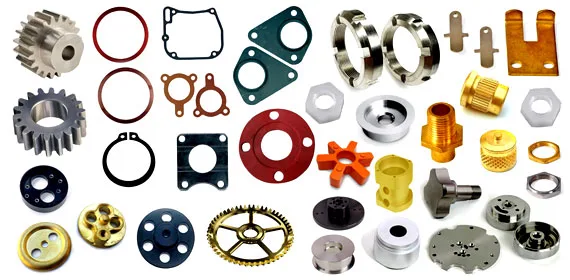

Photographs from our own catalogue: the machine, sample parts it has inspected and, where shown, the defects its cameras flag.

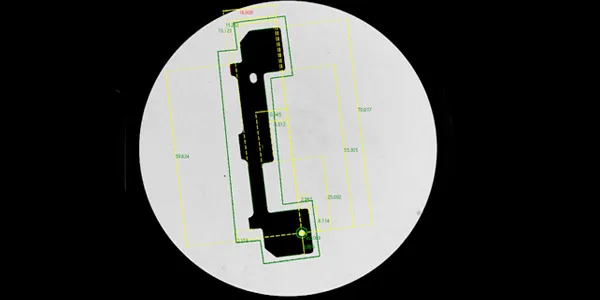

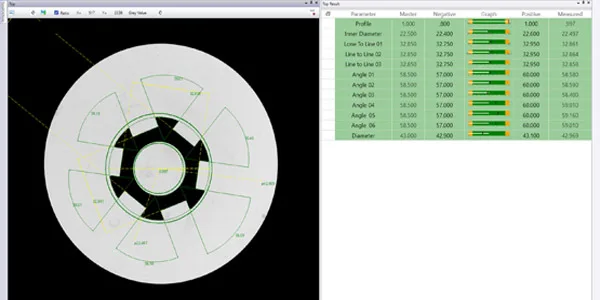

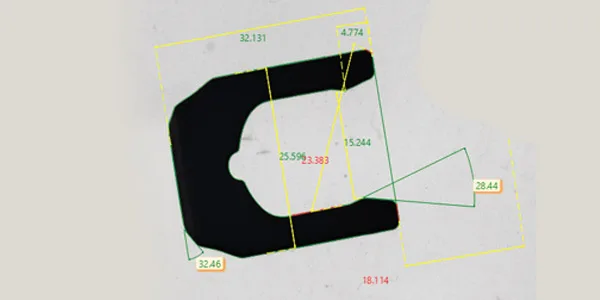

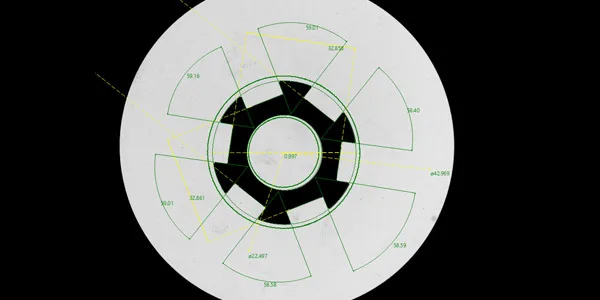

Inspection results on the Vertical Visigauge screen

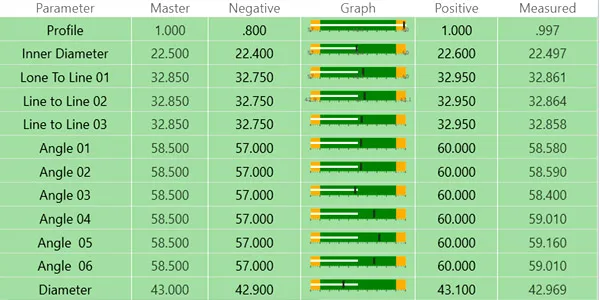

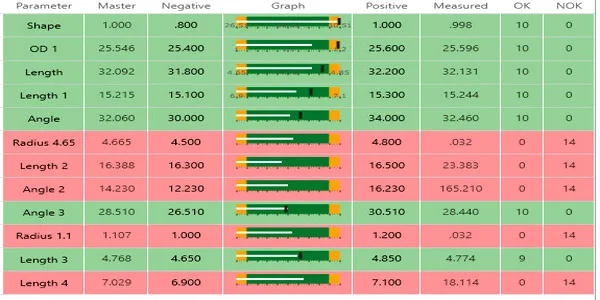

Screens from the machine's own software: the part as the camera sees it, the measured dimensions overlaid, and the parameter table with master value, tolerance, measured value and the OK / NOT-OK count.
The Vertical Visigauge on video
From our own YouTube channel — press play to load a film.
Precision measurement with the Vertical Visigauge
Why manufacturers choose the Vertical Visigauge
Inspection rooms choose the Vertical Visigauge for flat and profile-based parts: one-click non-contact measurement that reduces manual inspection errors, keeps quality consistent and leaves a batch-wise and SPC record.
Questions buyers ask about the Vertical Visigauge
What can the Vertical Visigauge inspect?
More than 25 dimensional parameters — ID, OD, thread parameters, hole count, centre distance, radius, chamfer angle and width, gear major and minor diameter — on stamping, pressed, rubber, plastic, brass and automotive components.
What repeatability does it provide?
Repeatability starting from 1 µm* on the 24 × 36 mm and 30 × 45 mm fields of view, measured on the outer diameter of a calibrated master part; the 35 × 53, 43 × 65 and 60 × 90 mm fields are rated at 1.5, 2 and 3 µm.
How does it improve productivity?
One click measures every programmed dimension in a fraction of a second, data saves automatically and batch-wise and SPC reports are generated — reducing manual inspection time and keeping quality consistent.
Which machine types are available?
One-Click and Auto-Focus types are available; data report and backup is .xls through USB.
Will it work on your part?
Send 50–100 sample parts to our Bhosari lab and a vision engineer runs them on this machine, free of charge: the checks and the speed confirmed on your own parts before anything is quoted. Or start by describing the part to VisiExpert.
