Precision parts inspection machines that measure turned and machined parts.

On precision parts the defect is often a dimension — a diameter a few microns out, a missing operation, a damaged thread. Visimaster machines measure and inspect every piece, and log every reading for your customer audits.

Free sample feasibility check

Parts we inspect for this industry

Turned componentsPrecision machine partsPrecision brass componentsPrecision automotive componentsShaftsDowelsLong BoltsDowel PinsSmall StudsSmall Shafts

Defects caught

Cut marks: knife-like cuts or nicks in the surface
Dent Detection: pressed-in marks on any face
Scratch Detection: scratches and scoring on the surface
Damage: general mechanical damage to the part
Crack: a visible fracture in the surface
Burr: a sharp raised edge left by cutting or forming
Thread damage: any damaged, crushed or incomplete thread form
Colour Detection: wrong or uneven colour or shade
Texture Verification: surface finish that differs from the reference
Surface Deformities Detection: warping, sink marks or other shape faults on a face

Other checks: Absence/Presence Verification, Operation missing, OCR-OCV, Hole Detection

How it works

How turned-part inspection and measurement works on a Visimaster line

1
Feed
- Small turned parts run on the glass disc, manual or automatic loading
- Dowel pins, studs and small shafts feed automatically on the Conveyorised machine
- Shafts, dowels and long bolts up to 300 mm are scanned on the Thru Scan
2
Inspect and measure
- Glass Disc: inner and outer diameter, angle, height, half thread and thread presence, plus surface defects and OCR/OCV
- Horizontal Visigauge: 25+ dimensions in one click, repeatability from 1 µm, including steps, grooves, chamfers and threads
- Thru Scan: outer diameter, groove diameter, total length and step length end to end, repeatability from 1 µm
- Conveyorised: OD, length, chamfer, thread length and thread diameters at up to 300 PPM
3
Sort and report
- Out-of-tolerance parts separated automatically; OK parts ejected in counted batches
- Nano Glass Disc, Visigauge, Thru Scan and Conveyorised results save with batch-wise and SPC reports
- Visigauge results export as .xls over USB for customer audits

The machines that do it

Glass Disc Machine for Precision Parts Inspection

300 PPM · turned parts

Precision machine parts · Turned components · Precision brass components · Precision automotive components

Cameras: 6
Footprint: 2150 × 1700 × 2110 mm
Weight: 600 kg

Horizontal Visigauge

25+ dims · 1 µm

One-click gauging of 25+ dimensions in a fraction of a second — the horizontal type, for turned, automotive and precision machined parts.

Thru Scan

Up to 300 mm · 1 µm

Shafts, dowels and long bolts up to 300 mm — outer diameter, groove diameter, total length, step length and thread diameters measured without contact.

Cameras: 1
Footprint: 550 × 350 × 990 mm
Weight: 100 kg

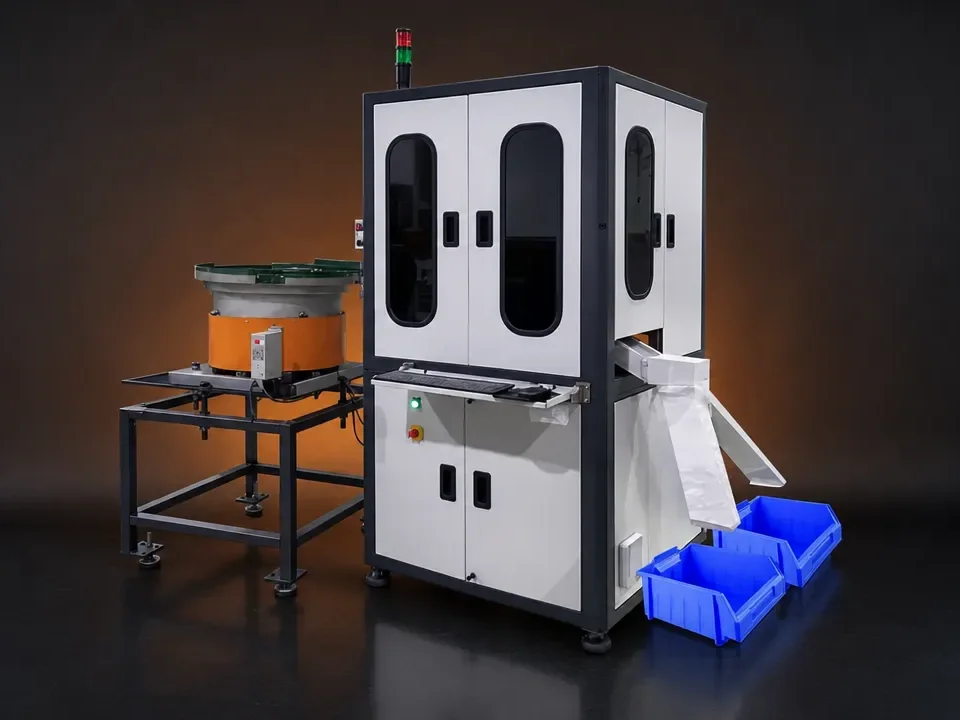

Conveyorised Inspection

300 PPM · 1 µm

Conveyor-fed inspection and sorting for dowel pins, studs and small shafts — auto feeding with SPC and batch reports.

Cameras: 2
Footprint: 1900 × 1400 × 2100 mm
Weight: 500 kg

In pictures

The parts, and the defects the cameras catch

Sample precision brass and turned components inspected on the Glass Disc precision-parts configuration

Precision-part defects the camera catches: burning mark and crack

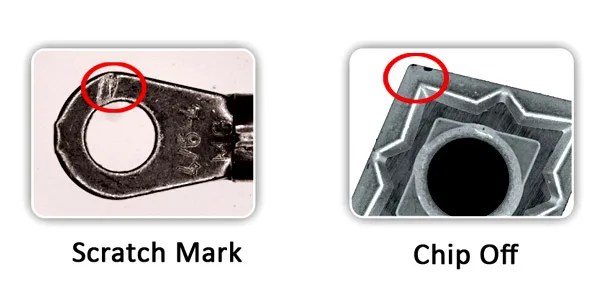

Precision-part defects the camera catches: scratch mark and chip off

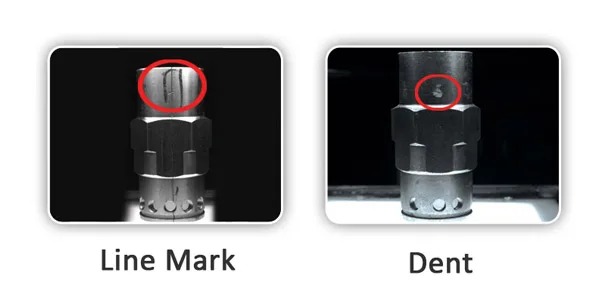

Precision-part defects the camera catches: line mark and dent

Real parts, on real machines

Precision machined component measurement

Projects delivered

Inspection systems built for turned & precision parts

Inspection systems we have built — the part, the checks, the camera system.

Bearing cage inspectionTotal length, ID, OD, side pocket dimensions; top & bottom flat surfaces, inner and outer 360°8-camera system

Planetary gear inspectionOD, ID, diameter, thickness; gear-tooth defects — chip off, cracks, dents, foreign particles, broken tooth, burr6-camera system

Collet inspectionTotal length, total height; line mark, pitting mark, dent mark5-camera system

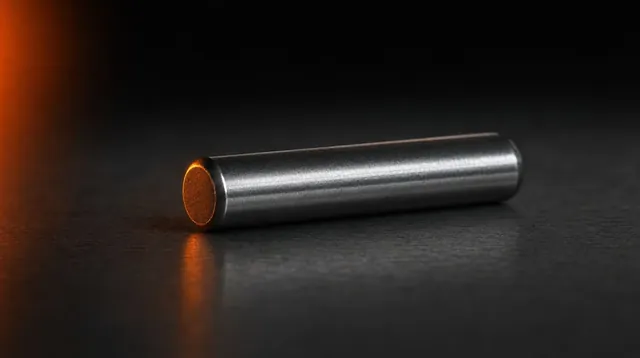

Shaft inspectionOD, length, thread major/minor diameter1-camera system

All twelve projects →

Common questions · Turned & precision parts

How precisely can turned parts be measured?

The Horizontal Visigauge and the Thru Scan offer repeatability starting from 1 µm; the Conveyorised machine likewise from 1 µm at up to 300 PPM. Visigauge repeatability is measured on the outer diameter of a calibrated master part.

Can long parts such as shafts be inspected?

Yes. The Thru Scan Machine scans shafts, dowels and long bolts up to 300 mm end to end, measuring outer diameter, groove diameter, total length and step length; multiple variants run with quick changeover.

How do I check if my turned part can be inspected?

Courier 50–100 sample turned parts — including a few defective pieces — to our lab in Bhosari, Pune. Our engineers run them on the actual machine platform and you receive a feasibility report, typically within a week. The check is free. Prefer to start online? Upload a drawing or photo of your turned part on the Ask AI page and get an engineering answer in minutes.

600+Installations

250+Clients

80%Repeat clientele

70+Engineers

Talk it through with an engineer

Every part in this industry is different. Describe yours to VisiExpert and it checks it against the machines on this page; an engineer takes it from there.

See all machines
