Optical Inspection & Sorting Machine – Glass Disc
Fasteners, O-rings, washers & turned parts inspected from every side on a rotating glass disc.
Vision inspection machine for fasteners, precision machine parts and turned components
- Inspection speed
- Up to 300 PPM
- Repeatability
- From 5 µm
- Camera stations
- 6
- Footprint
- 2150 × 1700 × 2110 mm
- Weight
- 600 kg approx.
- Loading
- Manual or automatic
The Optical Inspection & Sorting Machine – Glass Disc is an automated system built for the inspection and sorting of fasteners, precision machine parts, turned components, precision brass components, precision automotive components and plastic and rubber parts. Parts travel on a transparent rotating disc past the camera stations, so optical inspection and precision automation work together on every piece.
Read the full description
Alongside surface-defect checking the machine measures dimensions — inner diameter, outer diameter, angle and height — for dimensional accuracy and consistency. A dedicated taper station verifies internal thread present or absent, and OCR/OCV checks read markings.
Manual and automatic loading are both supported, and quantity-wise separate OK ejections segregate acceptable parts from defective ones. By automating the inspection and sorting process it helps reduce human error and keep quality consistent from lot to lot.
Key features
- Detailed Dimensional & Surface Defects Inspection
- Repeatability starts from 5 micron
- Inspection Speed up to 300 PPM.
- Manual as well as Auto loading systems.
- Quantity wise separate OK Ejections
- Can check OCR & OCV
- Internal Thread Present/ Absent
Can inspect
Inspection parameters
Surface defects: Scratch, Dent Detection, Damages, Burr, Cut marks, Crack, Thread Damage, Surface Deformities Detection, Colour Detection, Texture Verification
Other checks: Absence/Presence verification, Operation Missing, OCR-OCV, Hole Detection
Camera stations
| Camera | Position | Operations |
|---|---|---|
| 1st | Top | OD, ID Inspection |
| 2nd | Side | Side Dimension Inspection |
| 3rd | Taper | Internal Thread Present/Absent |
| 4th | Top | Top Surface Defects |
| 5th | Bottom | Bottom Surface Defects |
| 6th | Top | Outer 360° Surface Defects |
Camera configuration is customizable based on defect and size criteria.
Machine data
- Dimensions & weight
- Dimensions (L×W×H): 2150 × 1700 × 2110 mm · Weight: 600 kg approx.
- Add-ons
- Packaging Machine · Batch Wise Ejection
The machine and the parts it inspects

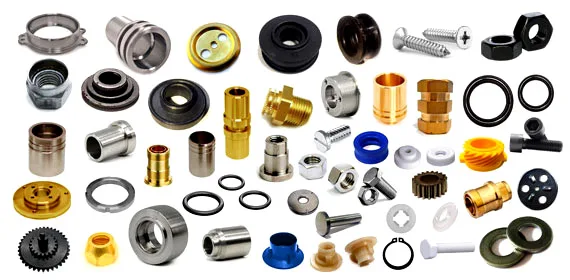

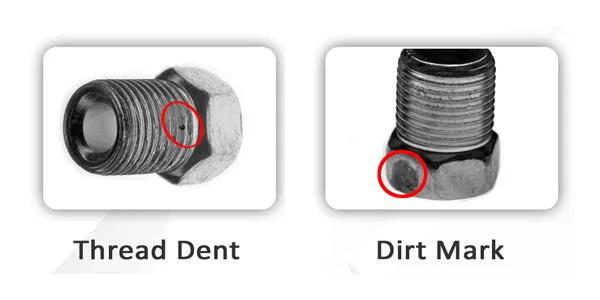

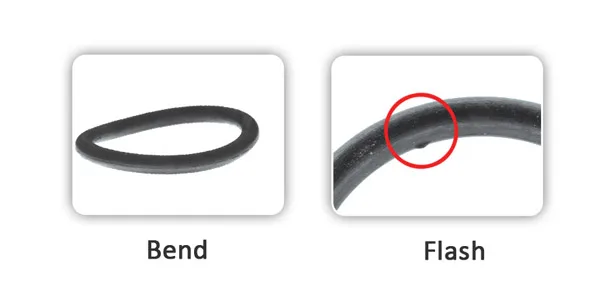

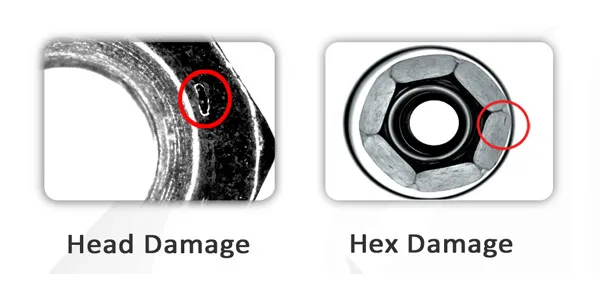

Photographs from our own catalogue: the machine, sample parts it has inspected and, where shown, the defects its cameras flag.
Inspection results on the Glass Disc screen

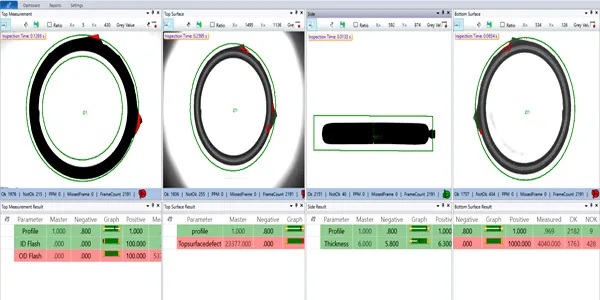

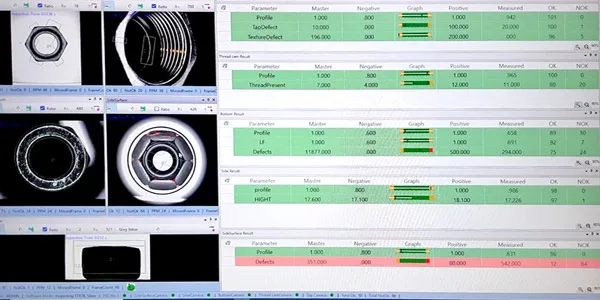

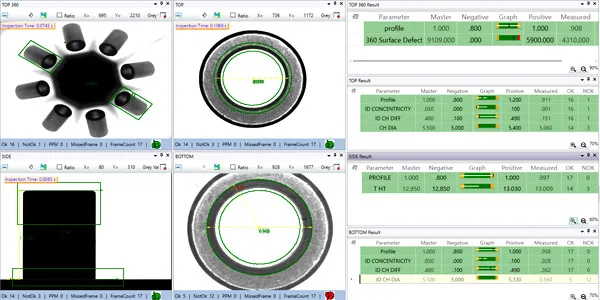

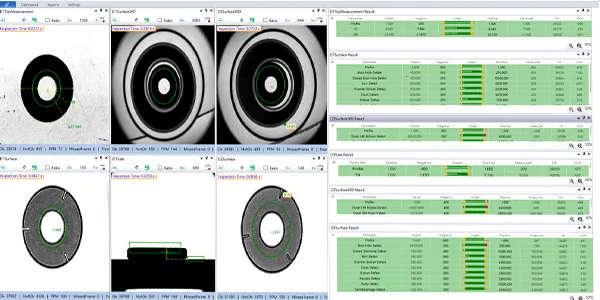

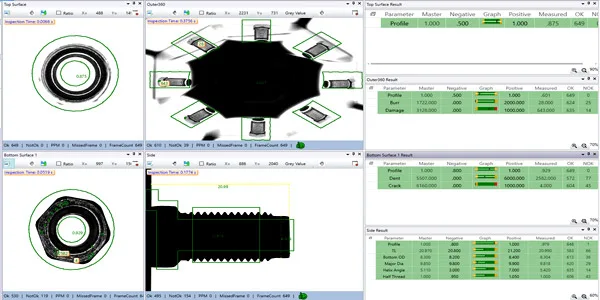

Screens from the machine's own software: the part as the camera sees it, the measured dimensions overlaid, and the parameter table with master value, tolerance, measured value and the OK / NOT-OK count.
The Glass Disc on video
From our own YouTube channel — press play to load a film.
Glass Disc vision inspection & sorting machine
How the machine detects O-ring defects in seconds
Optical inspection & sorting machine for O-rings
Optical sorting machine for washers
Dedicated configurations for your part
Open a configuration to see its own features.
Glass Disc Machine for Washer Inspection
300 PPM · washers & shims
What changes in this configuration
- Precise Dimensional Measurement
- Single Program/ Common Model
Can inspect
Inspection parameters
Surface defects: Dent Mark, Chip Off, Black Spot, Outer Burr, Foreign Material, Pit Mark, Line Mark, Burr on OD, Plating Defect & Cut Mark
Other checks: Bend
Glass Disc Machine for O Ring Inspection
Up to 600 PPM · O rings
What changes in this configuration
- Inspection Speed up to 600 PPM.
Can inspect
Inspection parameters
Surface defects: Dirt Mark, Flow Mark, ID Dent, ID Cut, OD Dent, Bend, Flash, Cut Mark, Peel Off & Short Mould
Glass Disc Machine for Nuts Inspection
300 PPM · thread checks
What changes in this configuration
- Thread Present/ Absent/ Pitch Variation
Can inspect
Inspection parameters
Surface defects: Damage, Head Crack, Head Damage, ID Thread Damage, Cut Mark, Scratch Detection, Dent Detection, Thread Burr, Half Thread
Other checks: OCR-OCV, absence/presence verification
Glass Disc Machine for Bolts Inspection
300 PPM · 360° + OCR
What changes in this configuration
- Hole Continuity Inspection
- 360° Defects Detection
- Optical Characters Recognition/ Verification (OCR/ OCV)
- Thread Measurement & Defects Detection
Can inspect
Inspection parameters
Surface defects: Head Damage, Shank Damage, Hex Damage, Head Crack, Thread Dent, Dirt Mark, Thread Crack, Burr, Thread Damage
Other checks: Hole detection, OCR-OCV, Operation Missing, Absence/Presence Verification
Glass Disc Machine for Precision Parts Inspection
300 PPM · turned parts
What changes in this configuration
- Thread Present/ Absent
Can inspect
Inspection parameters
Surface defects: Cut marks, Dent Detection, Scratch Detection, Damage, Crack, Burr, Thread damage, Colour Detection, Texture Verification, Surface Deformities Detection
Other checks: Absence/Presence Verification, Operation missing, OCR-OCV, Hole Detection
Glass Disc Machine for Precision Parts Inspection — full page →
Glass Disc Machine for Plastic & Rubber Parts Inspection
300 PPM · soft parts
Can inspect
Inspection parameters
Surface defects: Colour Detection, Scratch Detection, Flash, Cut Marks, Flow Mark, Damage, Short Mould, Crack, Texture Verification, Surface Deformities Detection, Foreign Material
Glass Disc Machine for Plastic & Rubber Parts Inspection — full page →
Why manufacturers choose the Glass Disc
Manufacturers choose the Glass Disc because one platform inspects fasteners, turned parts and moulded components alike at production speed, and each configuration on this page is a variant of it.
Questions buyers ask about the Glass Disc
What can the Glass Disc machine inspect?
Fasteners, precision machine parts, turned components, precision brass components, precision automotive components and plastic and rubber parts — for dimensions, surface defects, OCR/OCV and absence/presence verification.
What dimensions and defects does it check?
Inner diameter, outer diameter, angle and height; defects such as scratches, dents, damage, burrs, cut marks, cracks, thread damage, surface deformities, colour and texture variation, operation missing, hole presence, OCR/OCV and internal thread present or absent.
What speed and accuracy does it provide?
Repeatability starting from 5 µm and inspection speeds of up to 300 parts per minute, with manual or automatic loading and quantity-wise separate OK ejections. The O-ring configuration runs at up to 600 PPM.
Are there dedicated configurations for particular parts?
Yes — washers, O-rings, nuts, bolts, precision parts and plastic-and-rubber parts each have a dedicated configuration with its own inspection parameters; open one from the Configurations section on this page.
Will it work on your part?
Send 50–100 sample parts to our Bhosari lab and a vision engineer runs them on this machine, free of charge: the checks and the speed confirmed on your own parts before anything is quoted. Or start by describing the part to VisiExpert.
