Conveyorised Inspection & Sorting Machine
Conveyor-fed inspection and sorting for dowel pins, studs and small shafts — auto feeding with SPC and batch reports.
Vision inspection machine for dowel pins, small studs and small shafts
- Inspection speed
- Up to 300 PPM
- Repeatability
- From 1 µm
- Camera stations
- 2
- Footprint
- 1900 × 1400 × 2100 mm
- Weight
- 500 kg approx.
- Loading
- Automatic feeding
The Conveyorised Inspection & Sorting Machine is built for efficient, accurate inspection of small cylindrical parts — dowel pins, small studs and small shafts — with an integrated automatic feeding system.
Read the full description

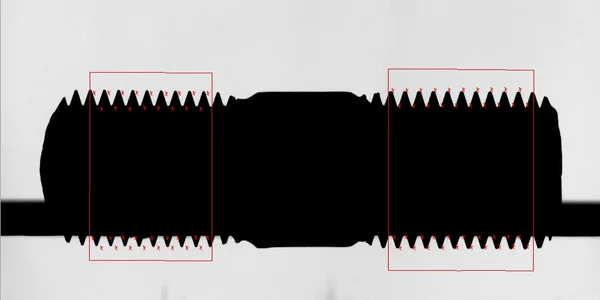

Two side camera stations inspect outer diameter, length, chamfer present or absent, chamfer angle and width, thread length and thread major and minor diameter.
Key features
- Auto Feeding System.
- High Accuracy Dimensional Inspection
- Repeatability starts from 1 micron.
- Inspection Speed up to 300 PPM.
- Automatic and Manual saving of data with Batch Wise Report and SPC Report
Can inspect
Inspection parameters
Camera stations
| Camera | Position | Operations |
|---|---|---|
| 1st | Side | up to 30 mm length, Side Dimension Inspection |
| 2nd | Side | up to 85 mm length, Side Dimension Inspection |
Machine data
- Dimensions & weight
- Dimensions (L×W×H): 1900 × 1400 × 2100 mm · Weight: 500 kg approx.
- Add-ons
- Packaging Machine · Bowl Feeder
The machine and the parts it inspects

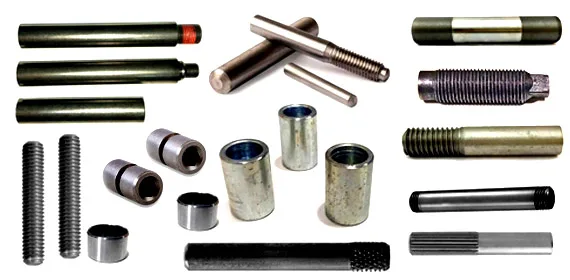

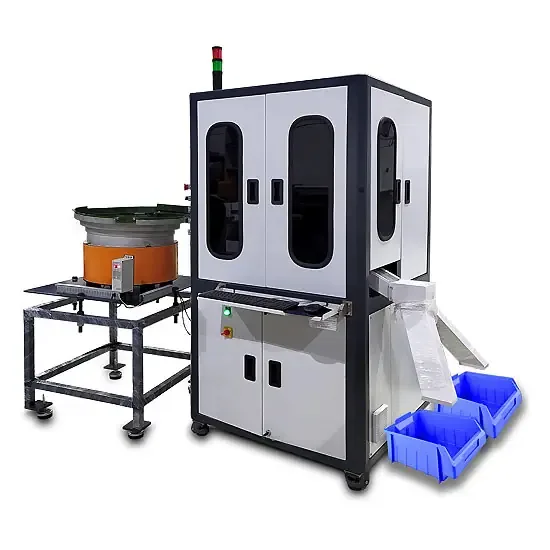

Photographs from our own catalogue: the machine, sample parts it has inspected and, where shown, the defects its cameras flag.

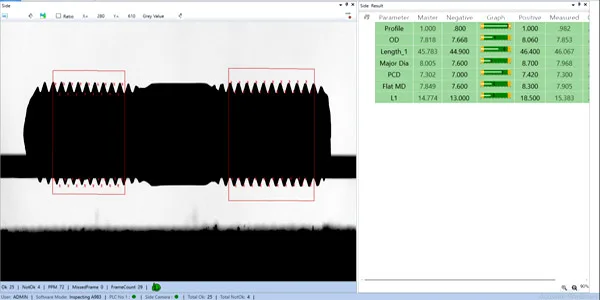

Inspection results on the Conveyorised Inspection screen

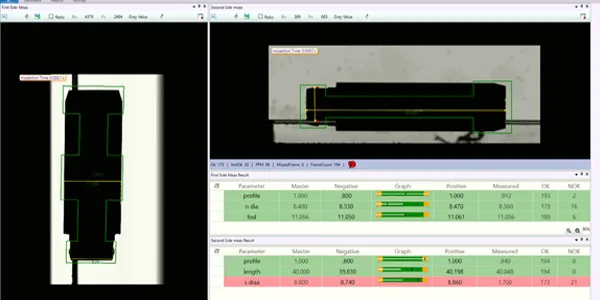

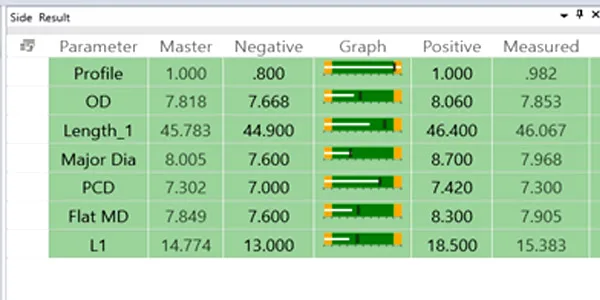

Screens from the machine's own software: the part as the camera sees it, the measured dimensions overlaid, and the parameter table with master value, tolerance, measured value and the OK / NOT-OK count.
Why manufacturers choose the Conveyorised Inspection
Manufacturers choose the Conveyorised machine for small cylindrical parts that must be fed and inspected continuously — auto feeding and auto sorting in one line.
Questions buyers ask about the Conveyorised Inspection
What parts can the Conveyorised machine inspect?
Dowel pins, small studs and small shafts — small cylindrical components that need high-accuracy dimensional inspection and sorting.
What dimensions does it check?
OD, length, chamfer presence or absence, chamfer angle and width, thread length and thread major and minor diameter.
What repeatability and speed does it provide?
Repeatability starting from 1 µm and inspection speeds of up to 300 parts per minute, with an automatic feeding system.
Does it support SPC reporting?
Yes — automatic and manual data saving with batch-wise and SPC reports.
Which camera set-up does it use?
Side cameras for side-dimension inspection: one for parts up to 30 mm long and one for parts up to 85 mm.
Will it work on your part?
Send 50–100 sample parts to our Bhosari lab and a vision engineer runs them on this machine, free of charge: the checks and the speed confirmed on your own parts before anything is quoted. Or start by describing the part to VisiExpert.
